Product Detail

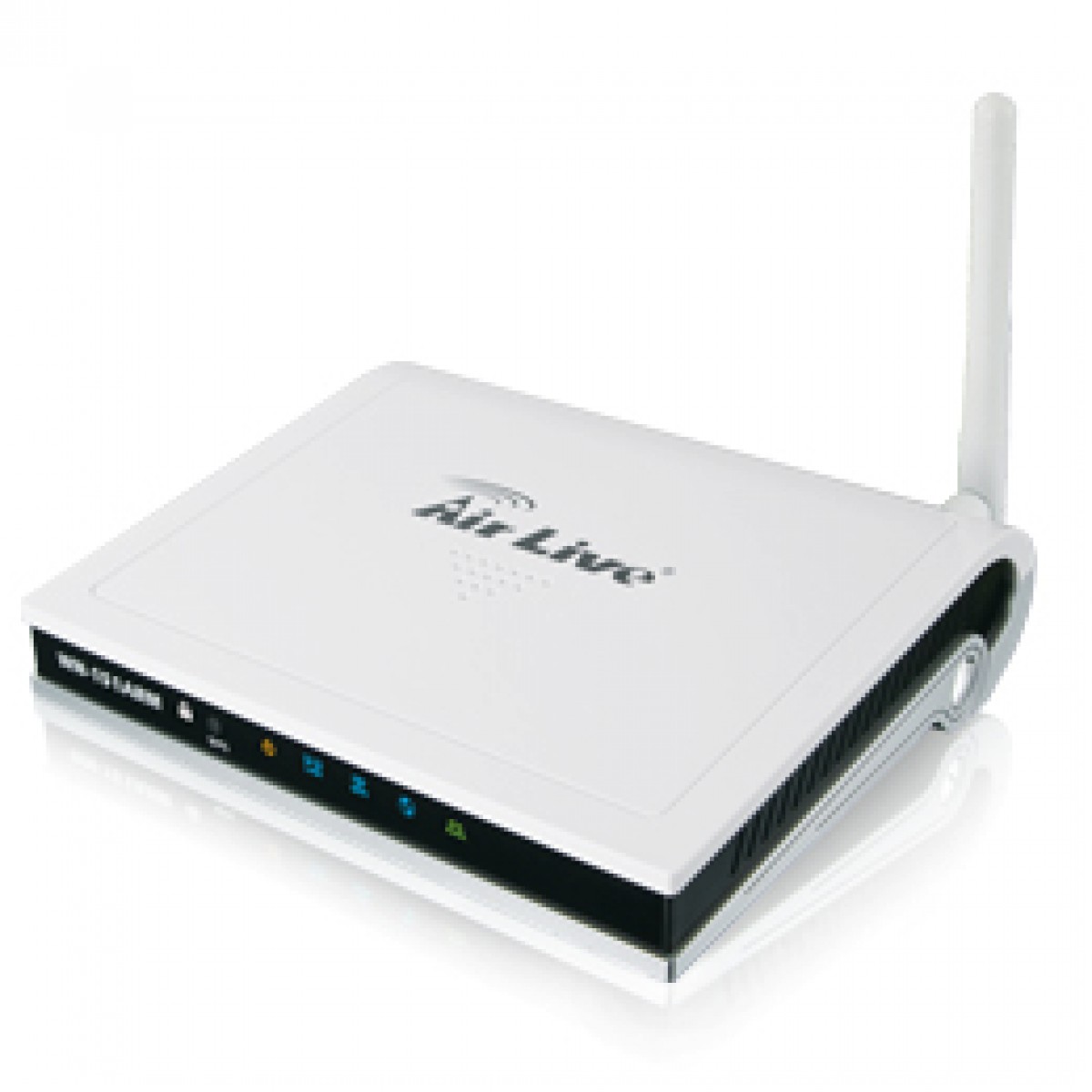

- 802.11n Wireless ADSL 2/2+ Router
- ADSL, ADSL 2, ADSL 2+ Support
- High-speed DSL connection and Internet sharing
- Wi-Fi Protected Setup (WPS), UPnP, DMZ support
- Automatic detection of DSL settings
- 150Mbps Wireless-b/g/n standard
- Multiple SSID and Bandwidth Control
- 1 x RJ-45 10/100Mbps data port
| Standards |  IEEE 802.3 (10BaseT Ethernet) IEEE 802.3u (100BaseTX Fast Ethernet) IEEE 802.11b (11Mbps Wireless LAN) IEEE 802.11g (54Mbps Wireless LAN) ITU G.992.1 Annex A (ADSL/POTS) ITU G.992.2 G.lite ITU G.992.3 Annex A, ADSL2 ITU G.992.3 Annex A, DELT ITU G.992.3 Annex L, READSL ITU G.992.5 Annex A, ADSL2+ ITU G.992.5 Annex M Multi-Mode code support ANSI T1413 support |
 General |
WAN port: 1 x RJ11 ADSL line LAN port: 1 x RJ45 10/100Mbps Auto MDI/MDI-X Flash: 4MB Memory: 16MB SDRAM Certifications: CE Mark, FCC Class B, RoHS |
| Router |
Supported connection types: - PPP over Ethernet (RFC 2516) - PPP over AAL5 (RFC 2364) - Multiple protocols over AAL5 (RFC 1483/2684) NAT- Virtual Server - DMZ (demilitarized zone) - Port forward Firewall- MAC address filter - URL filter UPnP (Universal Plug and Play) DHCP (server/client) VPN pass-through (PPTP, L2TP, IPSec) DDNS (Dynamic Domain Name Service) WDS (Wireless Distribution System) QoS (Quality of Service) |
| Wireless |
Chipset: Ralink Wireless Frequency Range: 2.4 ~ 2.4835 GHz Modulation Technologies: - 802.11b: Direct Sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK - 802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM - 802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM Channels:- USA & Canada: 11 channels - Europe: 13 channels Data Rates:- IEEE 802.11b (11Mbps, 5.5Mbps, 2Mbps, 1Mbps) - IEEE 802.11g (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) - IEEE 802.11n 40MHz (135Mbps, 121.5Mbps, 108Mbps, 81Mbps, 54Mbps, 40Mbps, 27Mbps, 13.5Mbps) - IEEE 802.11n 20MHZ (65Mbps, 58.5Mbps, 52Mbps, 39Mbps, 26Mbps, 19.5Mbps, 13Mbps, 6Mbps) Wireless Security- WEP (64/128bit) - WPA-PSK - WPA2-PSK - 802.1x Antenna- 1 x detachable dipole antenna with 2dBi gain |
| LEDs |
Security (White) Power (Orange) LAN (Blue) Wireless (Blue) Internet (Blue) ADSL (Green) |
| Environmental |
Dimensions: 145(W) x 120(D) x 34(H) mm Product weight: Operating temperature: 0~40°C Operating humidity: 0~85% (Non-Condensing) Storage temperature: -20~60°C |
| Power |
External power adapter: 12V DC, 1A |
