Product Detail
Brand
IBM
Model

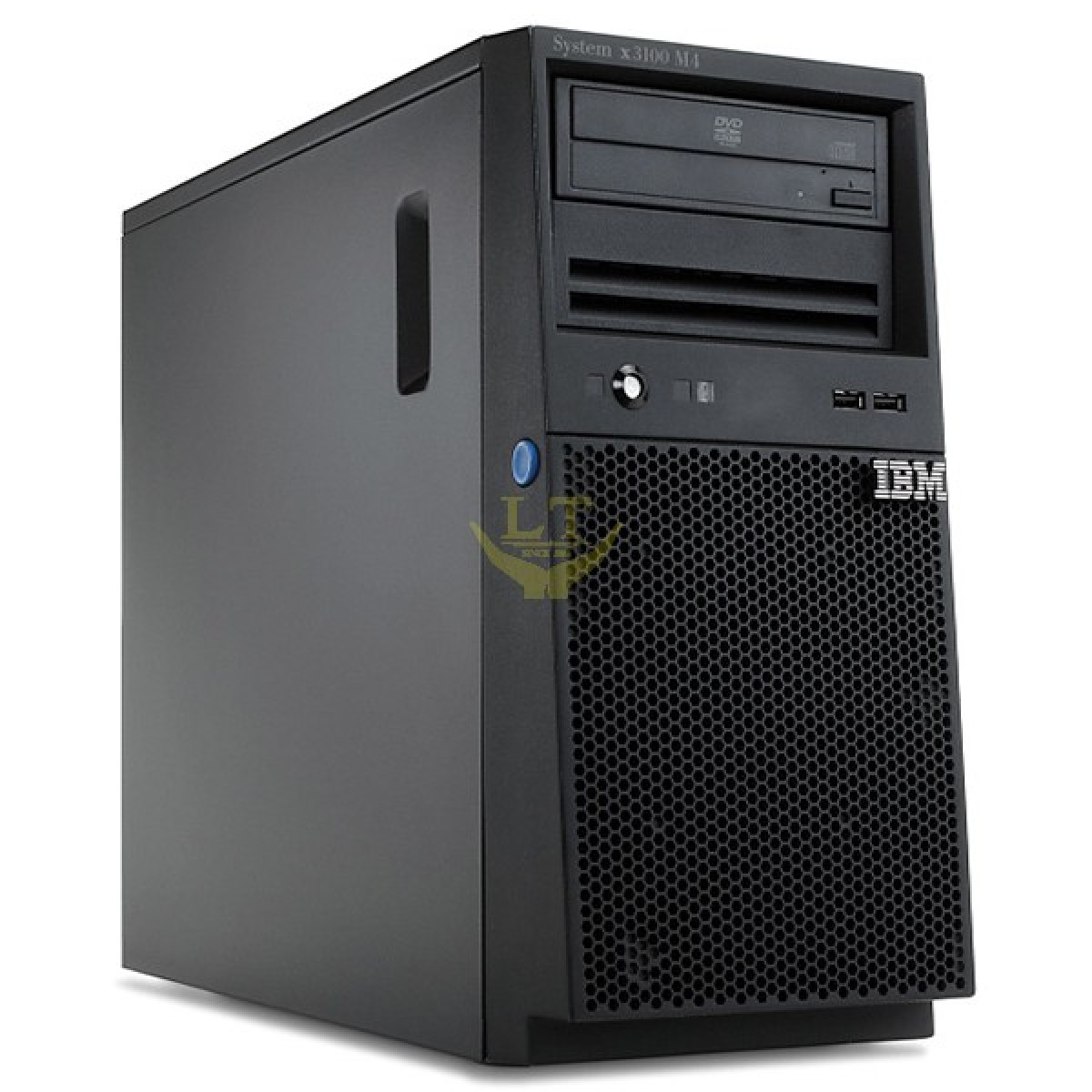

X3100 M4 (2582B2A)
Processor
Intel Xeon E3-1220v2 (Quad-Core 3.10GHz L3 8MB Cache) up to 3.6 GHz/8 MB/1600 MHz
Chipset
Intel lvy Bridge & C202
Graphics
Matrox G200eR/Share
Main Memory
4 GB standard, maximum 32 GB 1600 MHz DDR-3 UDIMMs via 4 DIMM slots
Hard Drive
No
Optical Disk Drive
DVD
Network
Integrated dual Gigabit Ethernet
PCIe 16x (at x16 mode)
1 Slot
PCIe x8
1 Slot
PCIe x4
1 Slot
RAID
ServeRAID-C100 for System x supports integrated RAID-0, -1; supports hardware RAID-0, -1, -10, -5, -6 for advanced data protection
OS
OS Support: Microsoft Windows Server 2008 R2/Microsoft Windows Server 2008, SBS 2011, Red Hat Linux, SUSE Linux
PCIe 1x
1 Slot
SATA-II
6 Slots
USB2 Port
2 Port (Front Panel)
4 Ports (Back Panel)
4 Ports (Back Panel)
VGA Port
1 Port
Serial Port (com1)
1 Port
Power Supply
350 W fixed or 80-PLUS® certified 300 W fixed (4U model with 3.5" simple-swap HDDs, model dependent)/430 W hot-swap redundant power supply (5U model with 2.5" hot-swap HDDs)
Free Bundle
1 x USB Mouse
1 x USB Keyboard
1 x HDD 500GB
1 x USB Keyboard
1 x HDD 500GB
Warranty
