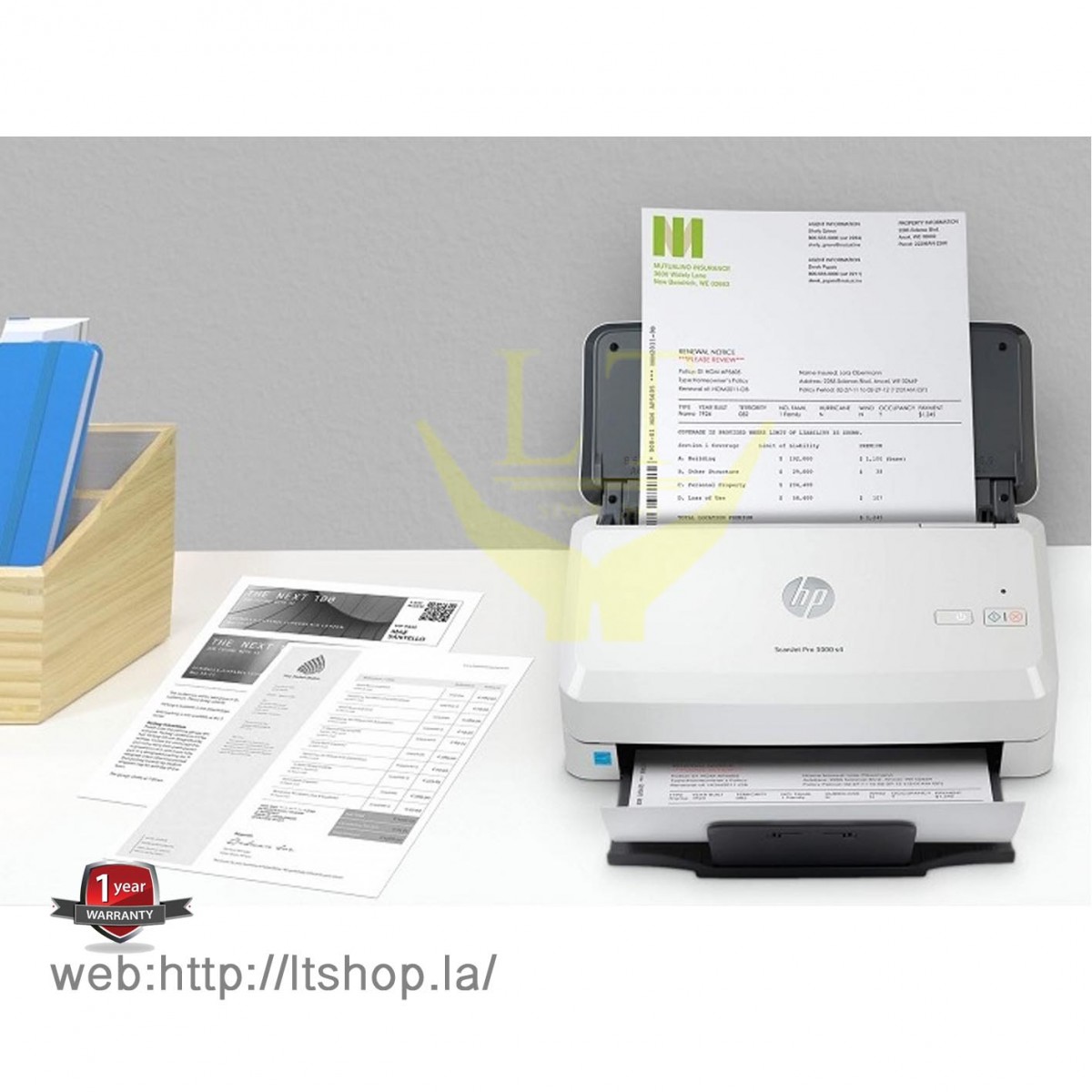

HP ScanJet Pro 3000s4 Sheet-feed Scanner

Default

Product Number

6FW07A

Scanner Type

Sheetfed

Scan Resolution

Scan Resolution, Optical

Up to 600 dpi

Scan Resolution, Hardware

600 x 600 dpi

Output Resolution Dpi Settings

75; 150; 200; 240; 300; 400; 500; 600; 1200 ppi

Scan Speed

Automatic Document Feeder Scan Speed

Up to  40 ppm/80 ipm

Scan Speed Footnote Number

[3] Sheet feed speeds: (All resolutions up to and including 300 ppi). Simplex 40 A-4 pages per minute. Duplex 80 A-4 images per minute.

Scanner Specifications

Duty Cycle (Daily)

Recommended daily duty cycle: 4000 pages

Bit Depth

24-bit (external), 48-bit (internal)

Auto Document Feeder Capacity

Standard, 50 sheets

Scan Size (ADF), Maximum

216 x 3100 mm

Scan Size ADF (Minimum)

50.8 x 50.8 mm

Scan Input Modes

One default scan mode on front-panel for HP scan in Win OS, HP Easy Scan/ICA in Mac OS and third parties applications via TWAIN, ISIS and WIA

Scan File Format

For text & images: PDF, PDF/A, Encrypted PDF, JPEG, PNG, BMP, TIFF, Word, Excel, PowerPoint, Text (.txt), Rich Text (.rtf) and Searchable PDF

Scanning Options (ADF)

Single-pass duplex

Duplex ADF Scanning

Yes

Scan Technology

CMOS CIS (Contact Image Sensor)

Levels Of Grayscale

256

Color Scanning

Yes

Multifeed Detection

YES

Light Source (Scanning)

LED

Scanner Advanced Features

Auto exposure, Auto threshold, Auto detect color, Background smooth/removal, Auto detect size, Straighten content, Enhance content, Multi-streaming, Auto feed, Multi-feed detection sensor, Advanced multi-feed detection, Auto orient, Multi-color dropout, Channel color dropout, Edge erase, Delete blank page, Merge pages, Hole fill, PDF permissions, Document separation (Blank page, Barcode, Zonal barcode, Zonal OCR)

Processor Speed

ARM-1176 666 MHz

Memory

256 MB

Connectivity And Communications

Connectivity, Standard

USB 3.0

Twain Version

Windows: 32-bit and 64-bit TWAIN version 2.1; Mac: n/a

Control Panel

Scan button, Power button with a LED and a LED for Error indication

Power

Power

Input Voltage range: 90 - 264 VAC, Rated Frequency: 50 - 60HZ, Worldwide use

Power Supply Type

External power adapter

Power Consumption Description

4.4 Watts (ready), 24 Watts (scanning), 1.1 Watts (sleep), 0.1 Watts (auto-off), 0.1 Watts (off)

Power Consumption Footnote Number

[1] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115V device.

Supported Printing Media

Media Weights, Supported, ADF

40 to 210 g/m2

Media Size (ADF)

U.S.-Letter: 215.9 x 279.4 mm (8.5 x 11 in); U.S.-Legal: 215.9 x 355.6 mm (8.5 x 14 in); U.S.-Executive: 184.2 x 266.7 mm (7.25 x 10.5 in); ISO A4: 210 x 297 mm (8.3 x 11.7 in); JIS B5: 182 x 257 mm (7.2 x 10.1 in); ISO B5: 176 x 250 mm (7.0 x 9.9 in); ISO A5: 148 x 210 mm (5.8 x 8.3 in); ISO A6: 105 x 148 mm (5.8 x 4.1 in); ISO A7: 74 x 104 mm (2.9 x 4.1 in); ISO A8: 52 x 74 mm (2.0 x 2.9 in); Custom: 5.08 x 7.36 cm to 21.6 x 309.9 cm (2.0 x 2.9 in to 8.5 x 122 in)

Media Types

Cut Sheet Paper, Printed Paper (Laser and ink), Pre-Punched Paper, Bank Checks, Business Cards, Freight Bills, Carbonless forms, Plastic Carrier sheets for easily damaged documents, Previously stapled media with staple removed, Plastic cards (up to 1.24mm)

Environmental

Operating Temperature Range

10 to 35°C

Storage Temperature Range

-40 to 60ºC

Operating Humidity Range

10% to 80% RH

Acoustic Power Emissions

59 (dB), 5.9 (B)

System Requirements

Compatible Operating Systems

Microsoft® Windows® (10, 8.1, 7, XP: 32-bit and 64-bit, 2008 R2, 2012 R2, 2016, 2019); MacOS (Catalina 10.15, Mojave 10.14, High Sierra 10.13); Linux (Ubuntu, Fedora, Debian, RHEL, Linux Mint, Open Suse, Manjaro); Citrix ready

Minimum System Requirements

macOS Catalina 10.15,macOS Mojave 10.14, macOS High Sierra 10.13, Microsoft® Windows® 10, 8.1, 7, XP: 32-bit and 64-bit, 2008 R2, 2012 R2, 2016, 2019, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Microsoft® Internet Explorer

Mac Compatible

Yes

Minimum System Requirements For Macintosh

macOS Catalina 10.15,macOS Mojave 10.14, macOS High Sierra 10.13; 1 GB HD; Internet required; USB

Dimensions And Weight

Dimensions Without Stand (W X D X H)

300 x 172 x 154 mm

Maximum Dimensions (W X D X H)

300 x 410 x 310 mm

Package Dimensions (W X D X H)

397 x 248 x 242 mm

Weight

2.7 kg

Package Weight

4.2 kg

Box Contents

What's In The Box

Power cord; Power Adapter; USB Cable; Scanner Engine; Flyers; Install Guide

Cable Included

Power cord; Power adapter; USB cable

Software Included

Windows: HP WIA scan driver, HP TWAIN scan driver (32-bit and 64-bit), HP Scan, HP Scanner Tools Utility,  I.R.I.S Readiris Pro, I.R.I.S Cardiris, OpenText ISIS

Warranty

Warranty

1 Year return to HP

Certification And Compliance

Environmental

RoHS-Compliant

Safety Approvals And Requirements

IEC 60950-1:2005 +A1:2009+A2:2013/EN60950-1:2006 +A11:2009 +A1:2010+A12:2011+A2:2013; IEC 62479:2010 / EN 62479:2010; IEC 62471:2006/ EN62471:2008; GB4943-2011

Electromagnetic Emission Standard

CISPR 22:2008 & CISPR 32: 2012/ EN 55032:2012 - Class B, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010, FCC Title 47 CFR, Part 15 Class B / ICES-003, Issue 6, GB9254-2008, GB17625.1-2012
