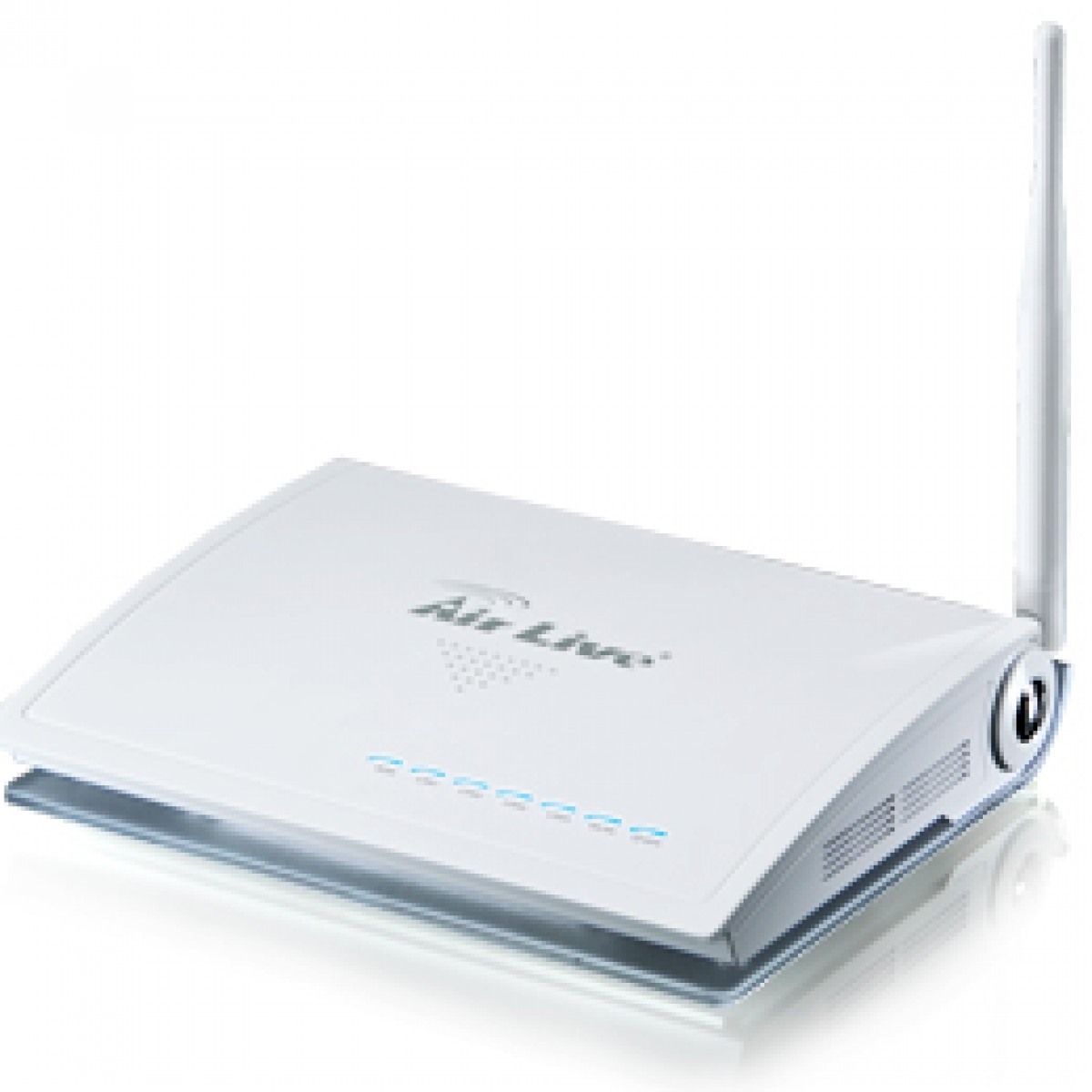

Hi-Power Wireless-b/g/n PoE AP Router

Product Detail

Multi-Function Wireless Mode

The N.Power is built with the famous AirLive Wireless engine that includes the ability to change wireless modes for different applications. In addition, advance functions such as Virtual AP, bandwidth control, and over 100 features are harnessed by the user friendly AirLogic interface. Everything is arranged in the most intuitive fashion so you can start quickly without even looking at the user’s guide. The setup wizard can get your N.Power working in 3 simple steps.

Hotel, Schools, and Public Hotspot
With the N.Power's incredible large coverage, it is ideal for hotel, school, park, shopping malls installations. You can use far less number of access points to achieve the same coverage; therefore, reduce the cost of installation tremendously. In addition, the built-in passive PoE port allow installation in places far away from electricity.

Crystal Synergy Design

Take one look at the N.POWER and you will indulge yourself in its stylish design. The N.POWER uses AirLive's latest Crystal Synergy design statement. It combines the elements of transparency, suspension, and kinetic movement to form the breathtaking gravity defying style. It is not only beautiful to look at but also provides the maximum amount of cooling surface. At AirLive, we believe our products should complement your interior design and stands out as a piece of art decor. The Crystal Synergy statement is a pinnacle achievement to that goal.

USB Port for FTP File Sharing

The N.Power’s USB port allows you to plug in a USB storage for quick file sharing via FTP service**. You can choose between no password or password access. It provides a simple way to share photos, videos, or other files with your friends and family together.

* Powered limited to 20dBm in EU and 23dBm in the U.S.

** FTP function supports FAT and FAT32 disk format only. Only file and folder name with western alphabets are supported.

Hardware Feature	150N 1T1R 11b/g/n Radio 20dBm in EU 1 WAN Port + 4 LAN Ports 1 USB 2.0 Port 12V Passive PoE Port (LAN1) 7 LED indicators Wall Mount Screw Holes Reset Button WPS Push Button
Antennas	1 x R-SMA antenna connectors 1 x 3dBi dipole antenna
Frequency Band	Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
Data Rate	802.11n - 20 MHz BW(LGI): 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 - 40 MHz BW(LGI): 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 - 20 MHz BW(SGI): 72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 - 40 MHz BW(SGI): 150, 135, 120, 90, 60, 45, 30, 15 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps 802.11b: 11, 5.5, 2 and 1 Mbps
Modulation	802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11g: OFDM 802.11b: CCK,QPSK,BPSK
TX Output Power	ETSI(Europe) - 802.11b : About 20dBm max - 802.11g : About 20dBm max - 802.11n : About 20dBm max
Receiver Sensitivity	802.11b 11Mbps ≦ -90dBm 802.11g 54Mbps ≦ -73dBm 802.11n HT20 MCS7 ≦ -70dBm 802.11n HT40 MCS7 ≦ -67dBm
Operation Modes	Router Mode AP Mode Client Mode WDS Repeater Mode WDS Bridge Mode
Software Functions	Setup Wizard WPS Support Multiple SSID Virtual AP functions Bandwidth Control / Traffic Shaping FTP File Sharing Support WPA with PSK /AES support ,WPA2 support Privacy Separator support Hide SSID Support , Wireless Multicast-to-Unicast, PPPoE, DHCP, Fixed IP, PPTP, L2TP, BigPond WAN types Virtual Server, DMZ, DDNS, NTP, MAC Filtering, IP Filtering, URL Filtering TTL, Remote Management, UPnP, VPN Passthrough Access Control List, WMM, WPS, Radius support Support adjustable output power Bootloader Protection and Emergency Firmware Upload Code Restore to Factory Default Up to 40 Static DHCP entries Static Route, Virtual Server, URL Filter, Firewall Green AP Energy Saving feature Firmware upgrade Configuration Backup and Restore PPTP/L2TP/IPSec VPN Pass-Through
Dimensions and Weight	Dimension: 154 x 130 x 316 mm AP Unit Weight(Approximate): 280g Package Weight(Approximate): 686g
Power Supply	Input: 100~240Vac/50~60Hz Output: DC 12V/1A 12V Passive PoE Port (DC Injector not included)
Certification	CE FCC
Environment	Operating temperature: 0~50℃ Operating humidity (non-condensing): 20~80% Storage temperature: -20~65℃ Storage humidity: 95% Max
