Product Detail

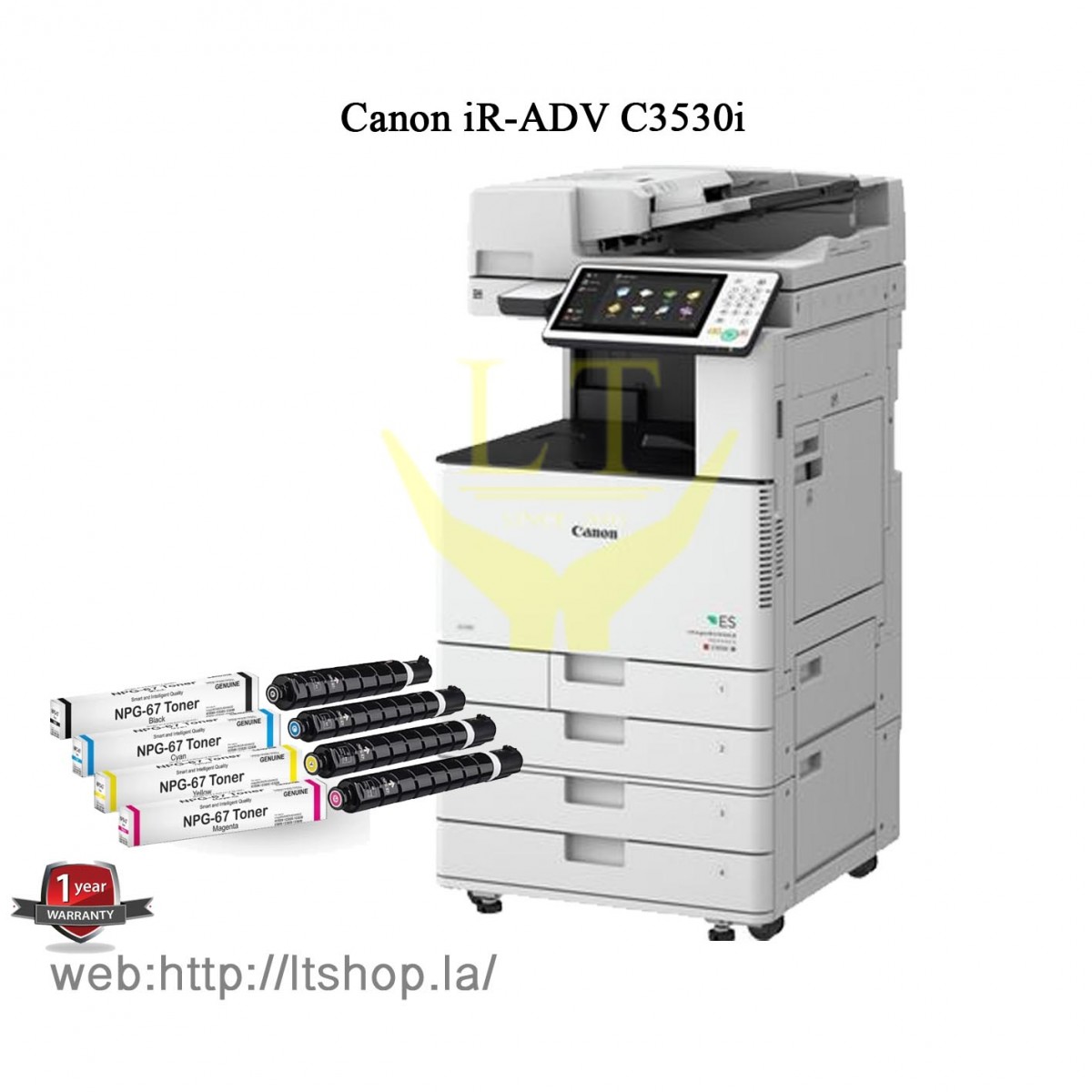

| Model Name | imageRUNNER ADVANCE C3530i |
| Type | Color Laser Multifunctional |
| Functions | Standard: Print, Copy, Scan, Send, Store Optional: Fax |
| Operation Panel | 25.6 cm (10.1 inch) TFT LCD WSVGA Color Touchpanel |
| Imaging System | Canon Dual Custom Processor (Shared) |
| Image Server Memory | 3.0 GB RAM |
| Hard Disk Drive | Standard: 250 GB |
| Network Interface Connection | 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) |
| Other Interface | Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device) Optional: Serial Interface, Copy Control Interface |
| Max Mailboxes Supported | 100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes |
| Max Pages Stored | 30,000 |
| Advanced Box | |
| Available Disk Space | Approx. 16 GB (Standard HDD) |
| Common Protocol | SMB or WebDAV |
| Advanced Box Features | Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support |
| Memory Media | |
| Standard | USB |
| Optional | STORE SPECIFICATIONS MAIL BOX (NUMBER SUPPORTED) 100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 30,000 Maximum Pages Stored ADVANCED BOX Communication Protocol: SMB or WebDAV Supported Client PC: Windows (Windows Vista/7/8/8.1/10) Concurrent Connections (Max.) SMB: 64 WebDAV: 3 (Active Sessions) ADVANCED BOX AVAILABLE DISC SPACE Approx. 16 GB (Standard HDD) ADVANCED BOX FEATURES Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support |
| Copy/Print Speed (BW/Color) | |
| Letter | Up to 30 ppm (Letter/A4) |
| Letter R | Up to 20 ppm |
| Legal | Up to 15 ppm (Legal/11’x17’/A3) |
| Ledger | Up to 15 ppm |
| Copy Specifications | |
| First Copy Time | As fast as 5.9 seconds (BW)/8.2 seconds (Color) |
| Multiple Copies | Up to 999 copies |
| Copy Exposure | Automatic or Manual (9 Levels) |
| Magnification | 25%-400% (1% Increments) |
| Preset Reductions | 25%, 50%, 64%, 73%, 78% |
| Preset Enlargements | 121%, 129%, 200%, 400% |
| Standard Paper Capacity | 1,200 Sheets |
| Maximum Paper Capacity | 2,300 Sheets |
| Output Paper Capacity | Standard: 250 Sheets Maximum: 3,450 Sheets (with External Finisher and Copy Tray) |
| Output Sizes | |
| Cassette | Paper Cassette 1: Letter, Executive, Statement-R, Envelope [No.10 (COM10), DL, ISO-C5], Custom Size (5-1/2" x 7-1/8" to 11-3/4" x 8-1/2") Paper Cassette 2: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL], Custom Size (5-1/2" x 7-1/8" to 12" x 18") |
| Bypass | 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Envelope Custom Size (3-7/8" x 3-7/8" to 12-5/8" x 18"), Custom Size (3-7/8" x 5-1/2" to 12-5/8" x 18"), Free Size (3-7/8" x 5-1/2" to 12-5/8" x 18") |
| Other Option | Cassette Feeding Unit-AP1: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" x 7-1/8" to 12" x 18") |
| Acceptable Paper Weights | |
| Cassette | 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2) |
| Bypass | 14 lb. Bond to 110 lb. Cover (52 to 300 g/m2) |
| Duplexing | |
| Duplexing | 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2) |
| Warm Up Time | From Power On: 34 Seconds From Sleep Mode: 10 Seconds Quick Startup Mode: 10 Seconds1 |
| Power Requirements | 120-127V AC 60 Hz,7.5 A 220-240V AC 50/60Hz, 4.0A |
| Power Consumption | Maximum: Approx. 1.5 kWh Standby: Approx. 44.1 W Sleep Mode: Approx. 0.8 W9 Typical Electricity Consumption (TEC) Rating: 1.2 kWh (120V/230V) |
| Plug | NEMA 5-15P (120V) CEEE7/7 (230V) |
| Dimension | 22-1/4" x 29-1/4" x 45-1/5"(565 mm x 742 mm x 1148 mm)2 |
| Installation Space | Basic: Stack Bypass + Cassette drawers open: 38-1/2" x 44-1/4" (978 mm x 1123 mm)2 Fully Configured: 63-3/4" x 44-1/4" (1620 mm x 1123 mm)3 |
| Weight | Approx. 213.9 lb. (97 kg)4 |
| Basic Copy Features | Preset Reduction/Enlargement Ratios by Area, Paper Setting, Previous Settings, Favorite Settings, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel |
| Special Copy Features | Book to Two Pages, Two-Sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different-Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Job Done Notice, Mirror Image, Copy ID Card, Detect Feeder Multi Sheet Feed, Free Size Original, Adjust One-Touch Color, Color Balance, Area Designation |
| Security Features | |
| Standard | AUTHENTICATION Standard: Universal Login Manager, User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in Optional: uniFLOW DATA Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption(FIPS140-2 Validated) Optional: Hard Disk Drive Removal, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW) NETWORK Standard: IP/Mac Address Filtering, IPsec, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP DOCUMENT Standard: Secure Print, Adobe LiveCycle® Rights Management ES2.5 Integration Optional: Encrypted PDF, Encrypted Secure Print, User and Device Signatures, Secure Watermarks, Document Scan Locking |
| Environmental Features | OPERATING ENVIRONMENT Temperature: 50 to 86 ºF Humidity: 20 to 80 % RH (no condensation) STANDARDS ENERGY STAR® Certified Rated EPEAT® Gold10 |
Supplies
| Toner | GPR-53 Toner11 Black Toner 36,000 impressions C/M/Y Toner 19,000 impressions |
Accessories
| Description | SCAN SPECIFICATIONS TYPE Single-pass Duplexing Automatic Document Feeder DOCUMENT FEEDER PAPER CAPACITY 150 Sheets (20 lb. Bond) DOCUMENT FEEDER SUPPORTED MEDIA SIZES 11" x 17", Legal, Letter, Letter-R, Statement, Statement-R DOCUMENT FEEDER SUPPORTED MEDIA WEIGHT BW Original: 13 lb. Bond to 58 lb. Cover (50 to 157 g/m2) CL Original: 17 lb. Bond to 58 lb. Cover (64 to 157 g/m2) PLATEN ACCEPTABLE ORIGINALS Sheet, Book, 3-Dimensional Objects [Up to 4.4 lb. (2 kg)] PULL SCAN Color Network ScanGear2 for both Twain and WIA Supported OS: Windows Vista/7/8/8.1/10/ Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2 SCAN RESOLUTION 600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100 SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES A range of solutions is available to provide scanning to mobile devices and cloud-based services depending on your requirements. SCAN SPEED (LETTER) Single-sided Scanning (BW/Color): 80 ipm (300 dpi)/51 ipm (600 dpi) Double-sided Scanning (BW/Color): 160 ipm (300 dpi)/51 ipm (600 dpi) |
| Fax Board | |
| Description | FAX SPECIFICATIONS MAXIMUM NUMBER OF CONNECTION LINES 2 MODEM SPEED Super G3: 33.6 Kbps G3: 14.4 Kbps COMPRESSION METHOD MH, MR, MMR, JBIG RESOLUTION 400 x 400, 200 x 400, 200 x 200, 200 x 100 SENDING / RECORDING SIZE Statement-R to 11" x 17" FAX MEMORY Up to 30,000 Pages SPEED DIALS Max. 200 GROUP DIALS / DESTINATIONS Max. 199 Dials SEQUENTIAL BROADCAST Max. 256 Addresses MEMORY BACKUP Yes |
| Fax Features | Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying the Sender's Name (when sending fax), Sender's Name (TTI), Select Line, Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Multi Sheet Feed Detection |
| Print Board | |
| Description | PRINT SPECIFICATIONS PRINT RESOLUTION (dpi) 1200 x 1200 STANDARD PAGE DESCRIPTION LANGUAGES UFR II, PCL®6, Adobe® PS® 3 DIRECT PRINT Available from USB, Advanced Box, Remote UI, and Web Access5 SUPPORTED FILE TYPES FOR DIRECT PRINT PDF, TIFF, JPEG, EPS, XPS PRINTING FROM MOBILE AND CLOUD A range of software and MEAP-based solutions are available to provide printing from mobile devices or Internet-connected devices and cloud-based services depending on your requirements. FONTS PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),6 Barcode Fonts7 PS fonts: 136 Roman OPERATING SYSTEM8 UFRII/PS: Server 2003/Server 2003 R2/Windows Vista®/Server 2008/Windows® 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016, MAC OS X (10.7 or later) PCL: Server 2003/Server 2003 R2/Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016 |
| Print Features | Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing on Transparencies, Front/Back Covers, Toner Reduction, Poster Printing |
| Universal Send Specs | |
| Description | SEND SPECIFICATIONS DESTINATION E-mail/Internet Fax (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 Fax (Optional), IP Fax (Optional) COLOR MODE Automatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White), Full color, Grayscale, and Black-and-White ADDRESS BOOK LDAP (2,000)/Local (1,600)/Speed dial (200) SEND RESOLUTION 600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100 COMMUICATION PROTOCOL File: FTP, SMB, WebDAV E-mail/I-Fax: SMTP, POP3, I-Fax (Simple, Full) FILE FORMAT Standard: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF A/1-b), XPS (Compact, Searchable), Office Open XML (PowerPoint®, Word) Optional: PDF (Trace & Smooth, Encrypted), PDF/XPS (Digital Signature) UNIVERSAL SEND FEATURES Original Type Selection,Two-Sided Original, Book to Two Pages, Different-Size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-To, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Originals, Multi Sheet Feed Detection |
| Description |
Footnotes 1 Time from device power-on to when copy jobs can be programmed. 2 Includes main unit and either Cassette Feeding Unit-AP1 or Cabinet Type-R. 3 Includes main unit and either Cassette Feeding Unit-AP1 or Cabinet Type-R and Staple/Booklet Finisher-AA1. 4 Includes main unit, ADF, consumables, and Cassette Feeding Unit-AP1. 5 PDF print from Web sites is supported. 6 Requires the optional PCL International Font Set-A1. 7 Requires the optional Barcode Printer Kit-D1. 8 Other operating systems and environments, including AS/400, UNIX, Linux and Citrix, may be supported. Some solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative. 9 0.8 W sleep mode not available in all circumstances due to certain settings. 10 120 v only 11 GPR-53L Toner also available for Color (C, M, Y). Yield (estimated @ 5% coverage) is 8,500 images. |
